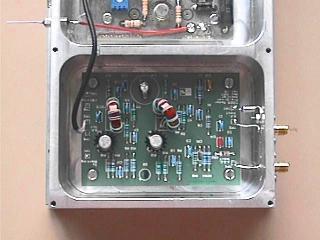

| This pre-amplifer uses a pair of cascaded 2N3866A NPN transistors with broadband matching networks. It delivers about 1W out, and is powered from a +15V DC source. Each transistor is fitted with a small heatsink. This amplifier is the first stage to the power amplifier chain and connects to the 50W RF Amplifier also called the driver amplifier. |
